SOS emergency call kit in public toilets

The SOS kit 6600/501 is used for emergency calls in public toilets. It is a comprehensive and reliable system that combines fast signal transmission through the wiring and maximum safety in use.

The device is equipped with an emergency rechargeable battery that ensures operation even in the event of a 230 V/AC power failure.

Send an inquiry

Additional description

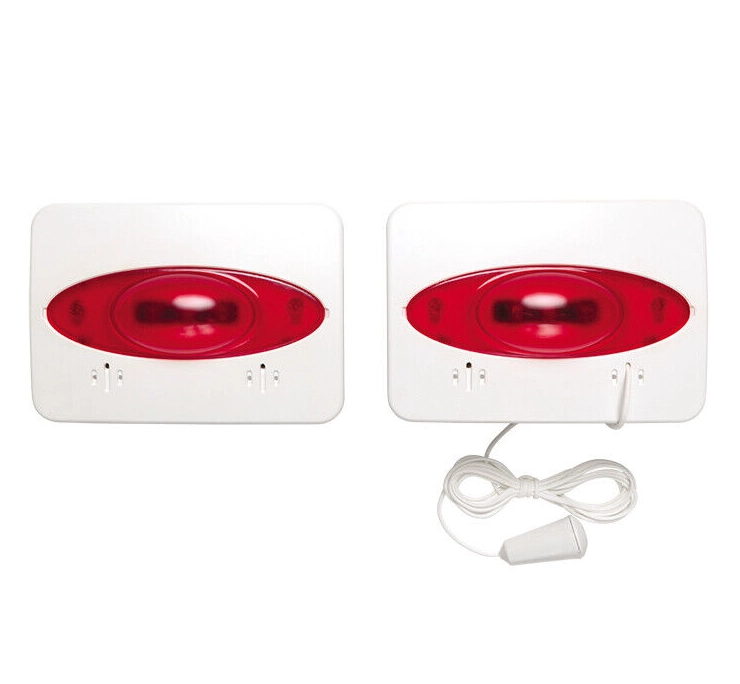

The kit consists of two units:

A unit that is installed outside the toilet. It is equipped with sound and light signaling of a request for help, and at the same time the call is reset on the device.

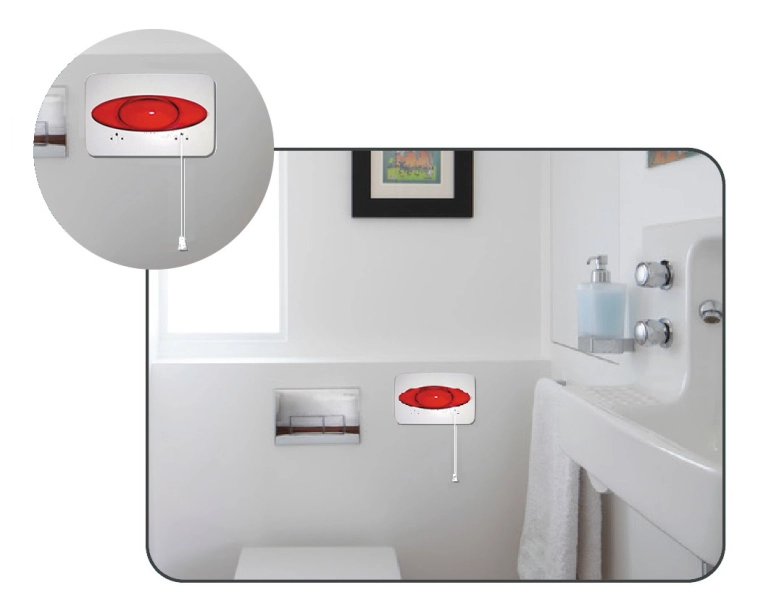

A unit that is installed inside the toilet. It is equipped with a pull cord that starts the call and light signaling, and it also has a built-in battery as an auxiliary power supply in the event of a power outage.

Both units are installed on a 503 flush-mounted box.

Technical information

Product type: SOS call device
Model: 6600/501
Operating voltage: 230 V~ 50/60 Hz
Output power: 0.5 VA
Output voltage (terminal + V2 of external device): 9 V
Signal transmission: via wired connection, we recommend using a cable with a cross-section of at least 0.5 sqmm
Auxiliary power supply: yes, the call unit has a built-in 6LR61 NI-MH 9 V 150 mA/h
Auxiliary power time: up to 24 hours in standby, up to 1 hour in activation
Weather protection: IP20
Protection against mechanical loads: IK02
Suitable ambient temperature: -20 to +70 °C
Dimensions of each unit (W x D x H): 120 x 85 x 65 mm
